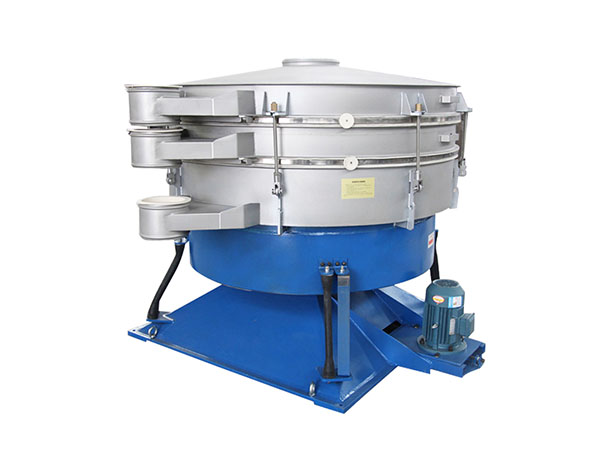

Tumbler Screener
95% High Sieving Precision! Soft Sieving
The Tumbler Screener (circular swing screen) adopts the swing vibration principle imitating manual screening. The driving device drives the screen surface to perform low-frequency, large-amplitude reciprocating swing motion, and combined with a reasonable screen surface inclination design, materials roll and stratify spirally forward on the screen surface. Materials with a particle size meeting the requirements fall through the screen mesh to complete the screening, while those that do not are discharged from the outlet along the screen surface, achieving precise classification of materials with different particle sizes.
Benefits For You
Precision in Every Detail, Simplicity in Every Use!
* 5 Times Capacity than Common Vibrating Screen
* Soft screening, No abrasion to the material surface

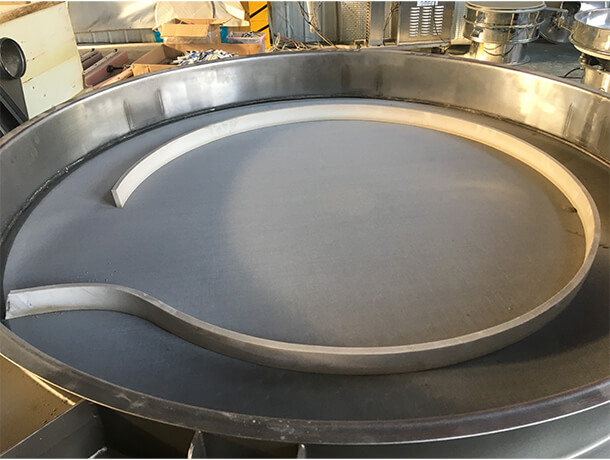

* The deflector ring design improves screening accuracy
* Basic rotary motion is similar to artificial sieving, eccentricity ratio is adjustable from 25 to 40mm, low speed V-belt drive is adjustable from 120 to 360rpm.
* Guarantee your sieving materials quality

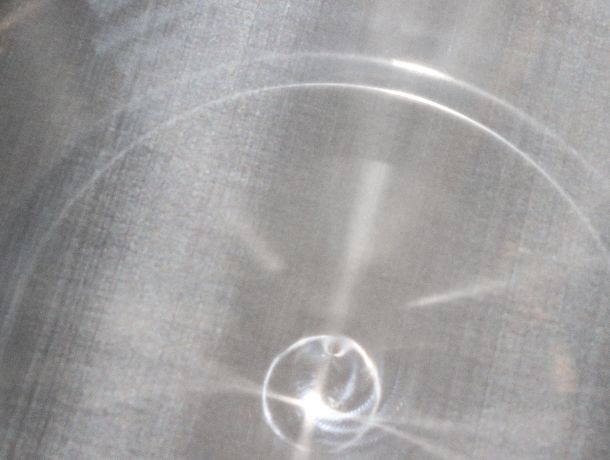

* Standard Setter of Screen Mesh Industry in China
* Multiple Layers: customized 1-5 layers, to help you get 2-6 different particle size.

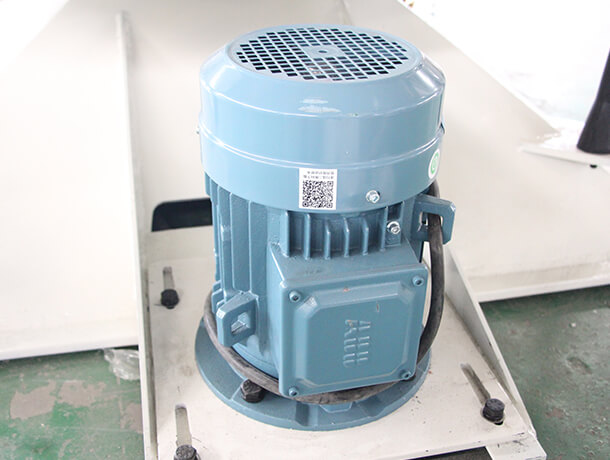

* ABB motor & SKF Bearing
* Good spare parts, make longer service life time
* Noise <75 dB
* Optimization of gravity balance, foundation dynamic load is low
* Optional hydraulic lifting device: for over 1500mm diameter vibrating screen, suggest to choose the device, it’ll be easy for workers to replace screen mesh
* Customizable Dimensions: Tailored to fit for various industrial needs
* Optional mesh cleaning system: silicon bouncing ball system or ultrasonic cleaning system

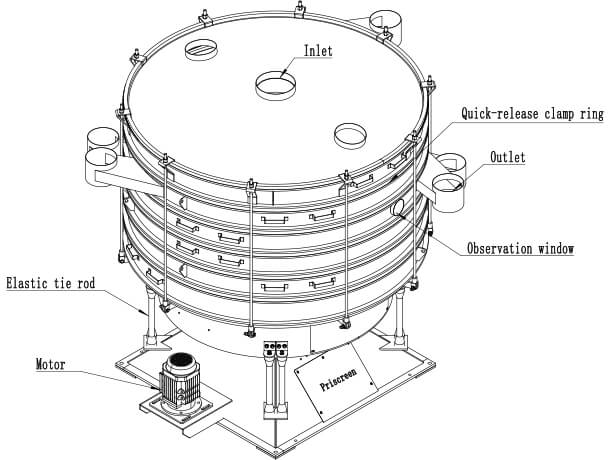

Details of Tumble Screener
Efficiency in Every Screen, Excellence in Every Detail!
Technical Parameters
Provide Customized Service Based On Your Real Site
| Type | Screen Diameter(mm) | Sieveing Area(㎡) | Screen Mesh | Sieving Accuracy(%) | Layers | Power (kw) |
| JSYBS1000 | 1000mm | 0.78 | 2-500 mesh | ≥95 | 1~5 | 2.2 |
| JSYBS1200 | 1200mm | 1.13 | 2-500 mesh | ≥95 | 1~5 | 2.2 |
| JSYBS1500 | 1500mm | 1.77 | 2-500 mesh | ≥95 | 1~5 | 3 |
| JSYBS2000 | 2000mm | 2.63 | 2-500 mesh | ≥95 | 1~5 | 4 |
| JSYBS2200 | 2200mm | 3.8 | 2-500 mesh | ≥95 | 1~5 | 5.5 |
| JSYBS2600 | 2600mm | 5.3 | 2-500 mesh | ≥95 | 1~5 | 5.5 |
Why Leading Companies Choose Priscreen?
Serve Over 50000+ Clients, Expert In Sieving Industry!
Frequently Asked Questions（FAQ）
The model is effected by your materials capacity, bulk density, special features(moisture, sticky etc.), mesh hole size, Percentage of each particle size, screening purpose (grading or impurity removal)
If you don’t know how to choose, contact us to get it please.
For common machines, within 14 working days. For OEM machines or special demands product or bulk order, generally it’ll be around 20-25 working days.
13 months since the shipping date for the whole machines.(not include the easy-broken spare part).
– We will communicate fully with you and select the most suitable screening equipment based on your material information.
– Before production, we will provide drawing for your final confirmation, clearly specifying all technical requirements and structural details.
– During the manufacturing process, our professional quality inspectors conduct strict inspections on all components.
– After production, each machine will undergo a 48 hour comprehensive test run to verify vibration stability, noise levels, and structural reliability.
– Will send you videos and photos to check before delivery, ensure the entire machines fully meet your actual application requirements.
As a leading manufacturer of vibrating screens and conveyors in China with 15 years of industry experience, we have earned the trust of renowned international and domestic brands such as BASF, BYD, CATL, Wilmar, Nippon, and YILING Pharmaceutical. First and foremost, quality and service have always been our top priorities. Furthermore, if the issue is caused by quality problems, we will bear all costs for replacement.
Our factory strictly follows the “6S” management system, so you are welcome to visit us at any time. In addition, if you inform us of your visiting schedule in advance, we will arrange pick-up service at the airport or train station. Moreover, we also offer online factory tours for your convenience.
The delivery time primarily depends on the shipping schedule and the distance between us. For more detailed information about shipping arrangements, please feel free to contact us directly.
Tired of low screening accuracy and inefficient production?
Our Tumbler Screener delivers 95%+ precision, 5x higher capacity, and ultra-low maintenance to boost your productivity.
Don’t miss out on optimized screening performance. Reach out now for a customized solution, exclusive pricing, and fast delivery – your ideal screening partner is just one message away!
