Inline Safety Vibrating Sieve
“Quality Inspector” In Your Production Line

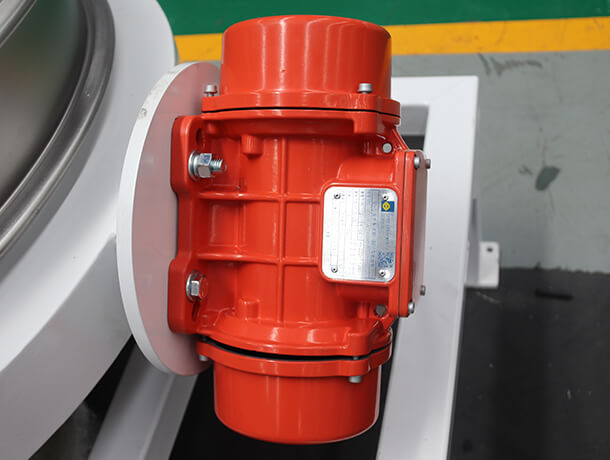

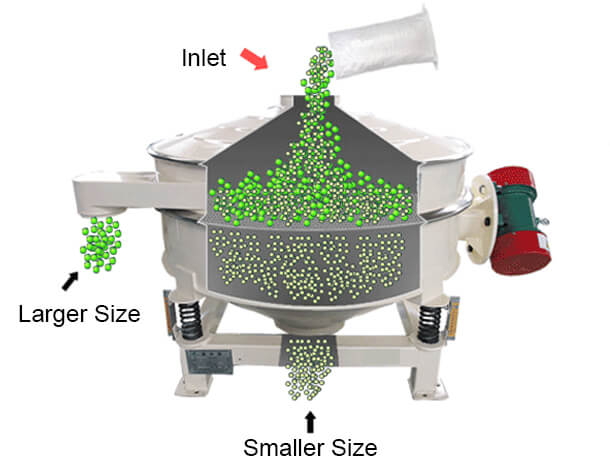

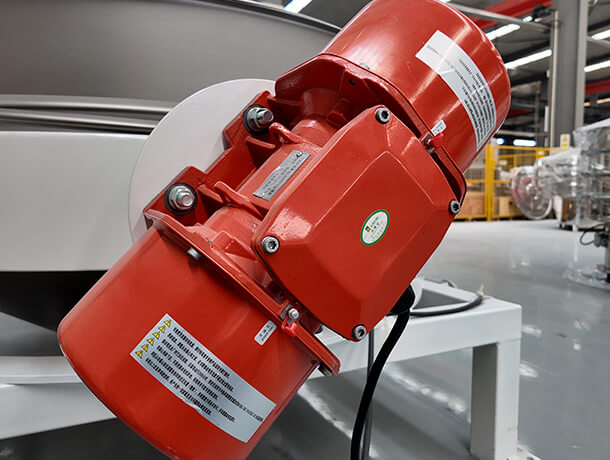

The Inline safety vibrating sieve is driven by symmetrically arranged dual motors. The high-frequency vibration generated by the vibration motor is transmitted to the screen surface, making the materials move in a linear trajectory along it. The inclination angle of the screen surface is optimally designed, enabling materials to be discharged straight to the outlet rapidly. During the process, materials with qualified particle sizes pass through the screen mesh for classification, while unqualified ones are directly discharged with vibration, achieving efficient and fast screening operations. It is especially suitable for the coarse and medium screening requirements of large throughput.
Product Features
Precision in Every Detail, Simplicity in Every Use!
– Suitable for different material screening needs
– The throughput can reach 20 t/h,meeting the needs of large production capacity
– Low energy consumption, stable and reliable
– Low noise
– Even the 2600 mm diameter super-large model is still strong and reliable
Product Details
Exquisite Details • Superior Performance
Technical Parameters
If You Need Customized Service, Feel Free to Contact Us！
| Type | Screen Diameter(mm) | Sieveing Area(㎡) | Speed (rpm) | Power (kw) |
| JSZP600 | 560mm | 0.22 | 1450 | 2*0.06 |
| JSZP800 | 760mm | 0.4 | 1450 | 2*0.08 |
| JSZP1000 | 950mm | 0.65 | 1450 | 2*0.25 |
| JSZP1200 | 1150mm | 0.95 | 1450 | 2*0.4 |
| JSZP1500 | 1450mm | 1.5 | 1450 | 2*0.45 |
Why Leading Companies Choose Priscreen?
Serve Over 50000+ Clients, Expert In Sieving Industry!
FAQ
The model is effected by your materials capacity, bulk density, special features(moisture, sticky etc.), mesh hole size, Percentage of each particle size.
If you don’t know how to choose, contact us to get it please.
For common machines, within 14 working days. For OEM machines or special demands product or bulk order, generally it’ll be around 20-25 working days.
13 months since the shipping date for the whole machines.(not include the easy-broken spare part).
– We will communicate fully with you and select the most suitable screening equipment based on your material information.
– Before production, we will provide drawing for your final confirmation, clearly specifying all technical requirements and structural details.
– During the manufacturing process, our professional quality inspectors conduct strict inspections on all components.
– After production, each machine will undergo a 48 hour comprehensive test run to verify vibration stability, noise levels, and structural reliability.
– Will send you videos and photos to check before delivery, ensure the entire machines fully meet your actual application requirements.
We’re top factory of the vibrating screen and conveyors with 15 years industry experience in China, trusted by BASF, BYD, CATL, Wilmar, Nippon, YILING Pharmaceutical and many other famous international and China brand, quality and service are always our top priorities, if it’s the quality’s reason, we’ll undertake all the fees to replace it.
Our factory strictly implements the “6S” management mode, you can visit at any time. And tell us your visiting schedule time, we’ll pick you up at the airport or trains station. And we provide on-line visiting service too.
It’ll be related to the shipping schedule and the distance between us, if you want to know more about the shipping, contact us to get it please.
