Flour Sifter Machine
Industrial Flour Sifter Machine for continuous screening of wheat flour, corn flour, rice flour, cassava flour, starch and other dry powders. The circular vibro sifter removes lumps, oversized particles and unwanted impurities while providing consistent screening performance.

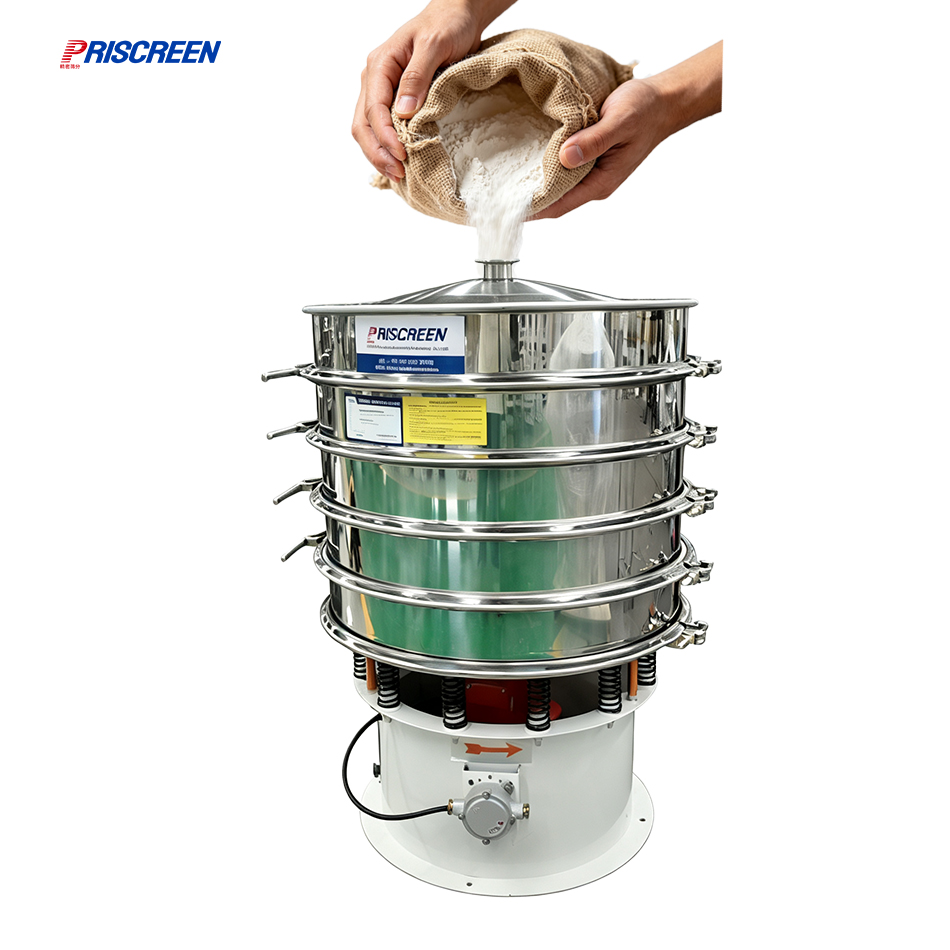

Flour Sifter Machine for Industrial Powder Screening
Flour quality can be affected by lumps, oversized particles, impurities and inconsistent particle size. For continuous production, manual sieving can also require significant labor and may become a bottleneck.
Our Flour Sifter Machine uses controlled vibration to move flour across the screen surface and separate particles according to the selected mesh size.
The machine can be configured with different screen meshes, screening layers, materials and discharge arrangements according to your production requirements.
It can be used as a standalone flour screening machine or integrated with conveyors, feeders, hoppers and packing systems.
Common Flour Screening Problems
Before choosing a flour sifting machine, many processors face similar production problems.
Flour Lumps and Agglomerates
Flour can form lumps during storage, transportation or processing. These agglomerates may affect feeding, mixing and the consistency of the final product.
A suitable flour sifter separates oversized lumps from the finer flour particles during continuous screening.
Manual Sieving Is Too Slow
Manual sieving may be practical for small batches, but it becomes inefficient when production volume increases.
Operators need to repeatedly feed, shake and clean the sieve, increasing labor requirements and making continuous production difficult.
A vibrating flour sifter automates the screening process and can operate continuously.
Inconsistent Screening Results
Manual screening depends on operator technique, screening time and material handling.
With a defined screen mesh and controlled vibration, the Flour Vibro Sifter provides a more consistent screening process.
Screen Mesh Blocking
Fine flour particles can accumulate on the screen surface and reduce screening efficiency.
For fine powders or applications with higher mesh requirements, an optional ultrasonic screening system can be considered to help reduce mesh blockage.
Oversized Particles and Impurities
Flour may contain oversized particles, agglomerated material or unwanted particles that need to be removed before further processing.
The screening machine separates the material according to the selected mesh size and discharges oversized material separately.
Production Bottlenecks
As production increases, manual or undersized screening equipment can become a bottleneck.
An industrial flour sifter can be connected with feeding and conveying equipment to create a continuous screening process.
How Our Flour Sifter Solves These Problems
| Customer Problem | Screening Solution |
|---|---|
| Flour lumps | Separates oversized agglomerates |
| Manual sieving | Continuous mechanical screening |
| Inconsistent screening | Controlled vibration and defined mesh |
| Screen clogging | Optional bouncing-ball or ultrasonic system |
| Oversized particles | Separate oversize discharge |
| High labor requirements | Automated continuous operation |
| Production bottleneck | Production-line integration |
| Different screening requirements | Customizable mesh and layers |
What Is a Flour Sifter Machine?
A Flour Sifter Machine is an industrial screening machine designed to separate flour according to particle size and remove unwanted oversized particles or impurities.
Our machine uses a circular vibrating screening principle. A vibration motor generates controlled vibration, causing the flour to move across the screen surface.
Fine particles pass through the selected screen mesh, while oversized particles remain on the screen and are discharged through a separate outlet.
The machine can be configured with one or multiple screening layers depending on the required separation.

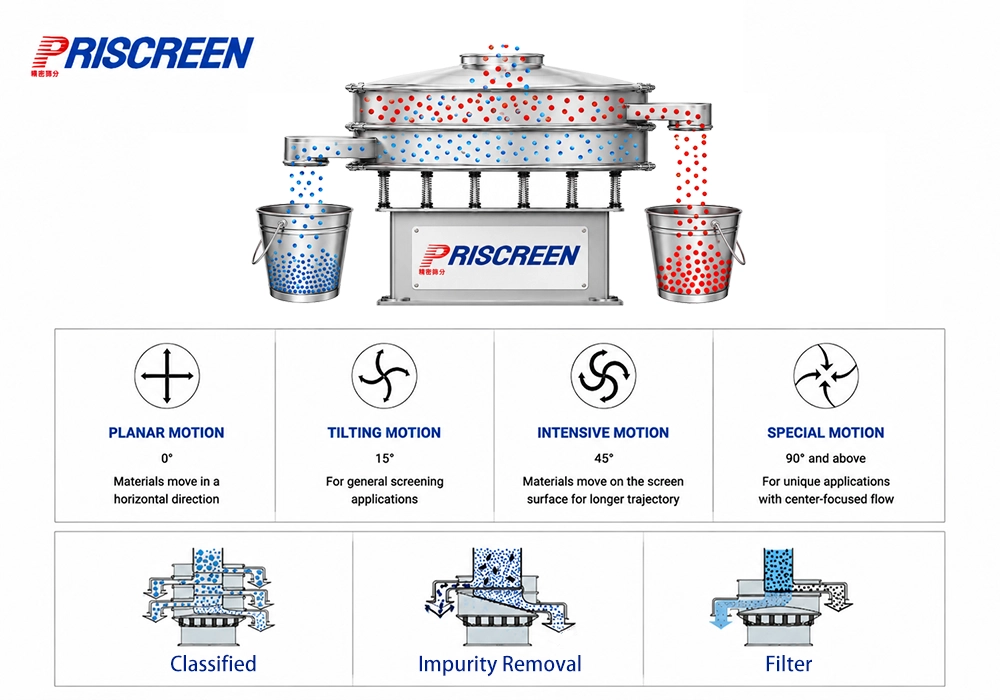

How Does a Flour Vibro Sifter Work?
The Flour Vibro Sifter uses vibration to continuously move flour across the screening surface.
The basic process is:
Feeding → Vibrating Screening → Fine Flour Passing Through Mesh → Oversize Discharge
When flour enters the machine, the vibration causes the material to spread across the screen.
Particles smaller than the selected mesh openings pass through the screen, while larger particles remain on the screen and move toward the discharge outlet.
For multi-layer configurations, different screen meshes can be used to classify the material into multiple particle-size fractions.

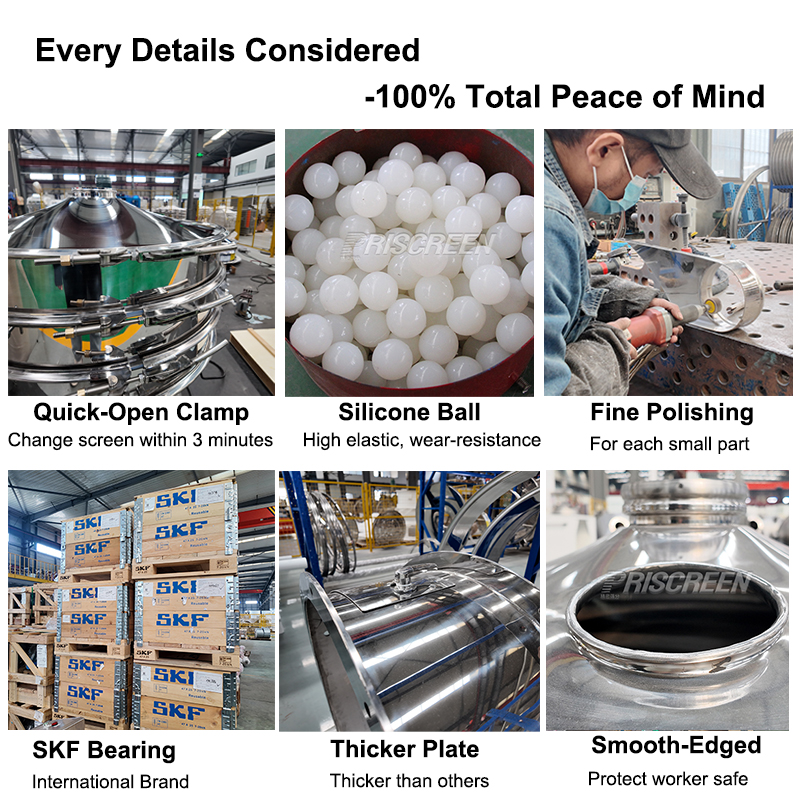

Key Features of Our Flour Sifter Machine
Stainless Steel Construction
304 or 316L stainless steel can be selected for material-contacting parts according to the application requirements.
The smooth internal surface can help reduce material residue and make cleaning easier.
Efficient Vibrating Screening
The circular vibration helps distribute flour across the screen surface and provides continuous contact between the material and screen mesh.
Customized Screen Mesh
The screen mesh can be selected according to:
- Flour type
- Particle size
- Required screening fineness
- Production capacity
- Screening stages
Single or Multiple Screening Layers
The machine can be configured with different numbers of screening layers.
A single-layer machine is suitable for basic impurity removal or simple separation.
Multi-layer configurations can be used when several particle-size fractions need to be separated.
Adjustable Vibration
The vibration intensity can be adjusted according to material characteristics and screening requirements.
This helps optimize material movement and screening performance.
Easy Screen Replacement
The screening structure is designed for convenient inspection, cleaning and screen replacement.
Optional Ultrasonic Screening
For fine powder applications where mesh blockage is a concern, an ultrasonic screening system can be added.
The ultrasonic system can help improve the screening of fine powders and reduce material accumulation on the screen.
Customized Feed and Discharge
Feed inlets and discharge outlets can be customized according to the customer’s production line.
Different outlet positions and configurations can be designed according to the installation requirements.
Flour Sifter Machine Specifications
| Item | Specification |
|---|---|
| Machine Type | Circular Vibrating Sifter |
| Application | Flour Screening and Sieving |
| Machine Material | Stainless Steel / Carbon Steel |
| Contact Material | 304 / 316L Stainless Steel |
| Screening Layers | 1–5 Layers |
| Screen Mesh | Customized |
| Screening Stages | Customized |
| Vibration Source | Vibration Motor |
| Screen Cleaning | Bouncing Balls / Optional Ultrasonic System |
| Surface Treatment | Polishing / Sandblasting |
| Feed Inlet | Customized |
| Discharge Outlet | Customized |
| Installation | Standalone or Production Line Integration |
Actual screening capacity depends on material characteristics, moisture content, bulk density, particle size, screen mesh, number of layers, feed rate and required screening efficiency.
For this reason, the machine model should be selected according to the actual flour and production requirements rather than capacity alone.
What Flour Can Be Screened?
The Flour Sifter Machine can be used for different types of dry flour and powder materials.
Common applications include:
- Wheat flour
- Corn flour
- Rice flour
- Cassava flour
- Potato starch
- Corn starch
- Tapioca starch
- Soy flour
- Sugar powder
- Salt
- Cocoa powder
- Spice powder
- Other dry food powders
Different materials have different flowability, moisture content and particle-size distributions. The screen mesh and machine configuration should therefore be selected according to the specific material.
Flour Sifter Applications
Flour Mills
In flour mills, the machine can be used for screening flour after milling or before further processing.
It helps separate oversized particles and improve particle-size consistency.
Bakeries
For commercial bakeries, screening flour before mixing can help remove lumps and unwanted oversized particles.
Food Processing Plants
The flour sifter can be integrated into automated powder handling and food processing lines.
Grain Processing
Different grain-based powders can be screened according to their particle-size requirements.
Powder Processing Lines
The machine can be connected with conveyors, feeders, hoppers, mixers and packing machines.

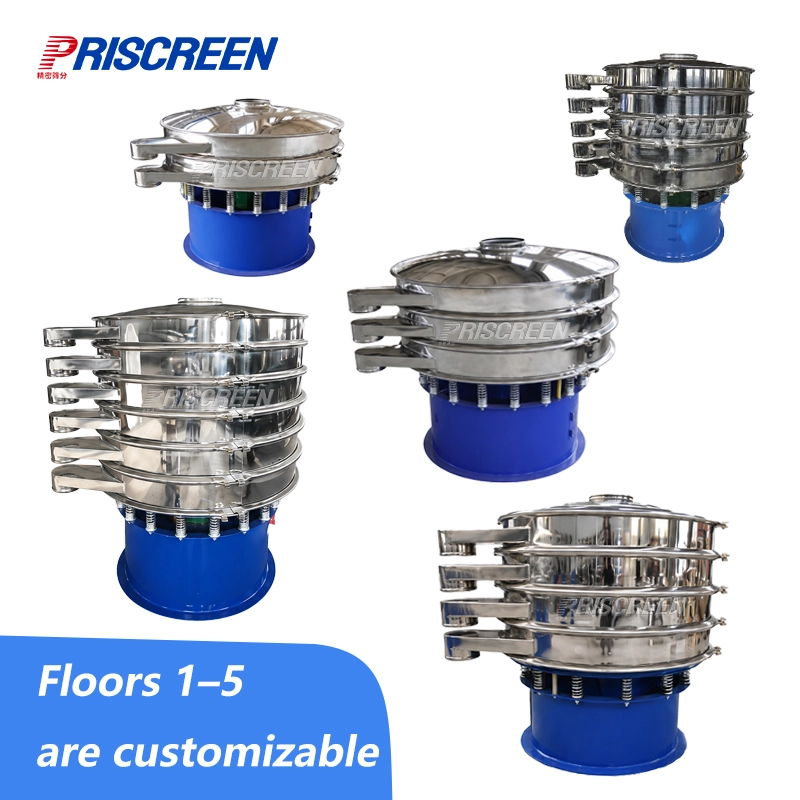

Single-Layer vs Multi-Layer Flour Sifter
The number of screening layers depends on the required separation process.
| Configuration | Typical Application |
|---|---|
| Single Layer | Basic flour screening and impurity removal |
| Two Layers | Two-stage particle separation |
| Three Layers | Multiple particle-size classification |
| Multi-Layer | More complex classification requirements |
If your main purpose is removing lumps and oversized particles, a single-layer configuration may be sufficient.
If several particle-size fractions need to be separated, a multi-layer configuration can be considered.
[IMAGE 6 – Single Layer vs Multi-Layer]
How to Choose a Flour Sifter Machine
Choosing the right flour sifter requires more than simply selecting a machine diameter.
1. Material Type
Tell us what material you need to screen, such as wheat flour, corn flour, rice flour, cassava flour or starch.
2. Required Capacity
Provide the required production capacity in kg/h or t/h.
Capacity depends on material characteristics, mesh size, screen area and required screening efficiency.
3. Required Mesh Size
The screen mesh should be selected according to the particle size that needs to pass through the screen.
4. Number of Screening Fractions
If you only need to remove oversized particles, one screening layer may be sufficient.
If you need several particle-size fractions, multiple layers may be required.
5. Material of Construction
For food-processing applications, 304 stainless steel is commonly selected.
316L stainless steel can be considered when higher corrosion resistance is required.
6. Cleaning Requirements
If the machine needs to be cleaned frequently, an easy-opening and easy-cleaning structure can be selected.
7. Screen Clogging
For fine powders and high-mesh screening, an ultrasonic system can be considered.
8. Production Line Layout
The feed inlet and discharge outlets should match the existing or planned production line.
Flour Sifter in a Production Line
The Flour Sifter Machine can operate as an independent screening machine or become part of a complete flour processing system.
A typical process may include:
Raw Material Feeding → Conveying → Flour Sifting → Powder Collection → Mixing / Processing → Packing
The exact process depends on the customer’s production requirements.
The sifter can be integrated with:
- Screw conveyors
- Vacuum conveyors
- Belt conveyors
- Bucket elevators
- Hoppers
- Mixers
Customized Flour Sifter Machine
Every production line has different space, capacity and material requirements.
We can customize the Flour Sifter Machine according to your process.
Customization options include:
- Machine diameter
- Number of screening layers
- Screen mesh
- Feed inlet
- Discharge outlet
- Stainless steel grade
- Surface finish
- Vibration motor
- Ultrasonic system
- Support structure
- Production-line connection
Stainless Steel Flour Sifter for Food Processing
For food powder applications, stainless steel can be selected for the material-contacting parts.
304 stainless steel is commonly used for general food-processing applications, while 316L can be considered for applications requiring higher corrosion resistance.
The internal surface can also be polished to help reduce material accumulation and simplify cleaning.
Flour Sifter Machine vs Manual Sieving
| Feature | Flour Sifter Machine | Manual Sieving |
|---|---|---|
| Operation | Continuous | Manual |
| Production Volume | Suitable for continuous production | Suitable for small batches |
| Screening Process | Controlled vibration | Operator dependent |
| Labor Requirement | Lower | Higher |
| Screening Layers | Single or multiple | Limited |
| Production Line Integration | Available | Difficult |
| Screen Mesh | Customizable | Limited |
| Automation | Possible | Mostly manual |
Manual sieving may be suitable for small-scale applications, while an industrial flour sifter is designed for continuous processing and production-line integration.
Why Choose a Flour Vibro Sifter?
A circular Flour Vibro Sifter provides a practical solution for continuous flour screening.
Depending on the configuration, it can provide:
- Continuous screening
- Controlled vibration
- Customized screen mesh
- Single or multiple screening layers
- Separate material discharge
- Stainless steel construction options
- Easy integration with conveying equipment
- Optional ultrasonic screening
- Customized inlet and outlet configurations
- Easy cleaning and screen replacement
The final machine configuration should be determined according to the actual material and production requirements.
Cleaning and Maintenance
Regular inspection and cleaning can help maintain stable screening performance.
Recommended maintenance includes:
- Clean the screen surface regularly.
- Check the screen mesh for damage.
- Inspect the vibration motor periodically.
- Check sealing components for wear.
- Remove accumulated flour from the machine.
- Inspect feed and discharge outlets.
- Check fasteners and machine connections.
- Replace damaged screen mesh when necessary.
For food-processing applications, cleaning procedures should follow the customer’s own hygiene and production requirements.
FAQ
What is a Flour Sifter Machine?
A Flour Sifter Machine is an industrial screening machine used to separate flour by particle size and remove lumps, oversized particles and unwanted impurities.
What is a Flour Vibro Sifter?
A Flour Vibro Sifter is a vibrating screening machine specifically used for flour and other powder materials. It uses controlled vibration to move material across a screen mesh.
Can the machine screen wheat flour?
Yes. The machine can be configured for wheat flour screening. The appropriate mesh and machine configuration depend on the required screening result.
Can it screen cassava flour?
Yes. Cassava flour can be screened using a suitable vibrating sifter. The machine configuration should be selected according to particle size, moisture and required capacity.
Can the machine remove flour lumps?
Yes. Oversized flour lumps can be separated from finer flour through the screen mesh. The actual result depends on lump size, moisture and mesh selection.
Can I use 304 stainless steel?
Yes. 304 stainless steel can be selected for material-contacting parts for many food-processing applications.
Can I use 316L stainless steel?
Yes. 316L can be selected when higher corrosion resistance is required.
How many screening layers can the machine have?
The machine can be configured with different numbers of screening layers according to the required separation process.
Can the screen mesh be customized?
Yes. The screen mesh can be selected according to the required particle size and screening application.
Can the machine be connected to a production line?
Yes. The flour sifter can be integrated with conveyors, feeders, hoppers, mixers and packing machines.
How do I choose the right Flour Sifter Machine?
Provide your material name, required capacity, moisture content, required mesh size, number of screening fractions and available installation space. These details can be used to determine a suitable machine configuration.
Get a Flour Sifter Machine for Your Application
Looking for an industrial Flour Sifter Machine for wheat flour, corn flour, cassava flour, starch or other powder materials?
Send us your material and screening requirements.
Our engineers can help evaluate the appropriate screen mesh, machine size, number of layers and configuration for your application.
Please provide the following information:
- Material name
- Material moisture
- Required capacity
- Required mesh size
- Required screening result
- Number of screening fractions
- Number of screening layers
- Material of construction
- Available installation space
Contact us for a customized Flour Sifter Machine solution.
Related Screening Equipment
If your production line requires additional material handling equipment, the Flour Sifter Machine can be combined with:
- Vibrating Feeder
- Screw Conveyor
- Vacuum Conveyor
- Belt Conveyor
- Bucket Elevator
- Packing Machine
- Rotary Vibrating Screen
- Ultrasonic Vibrating Screen
You can also explore our other screening solutions for powder, granular and fine materials.
