Flat Gyratory Screen: Industrial Reciprocating Sifter for High-Precision Separation
Flat Gyratory Screen: A New Generation of High-Efficiency Separation

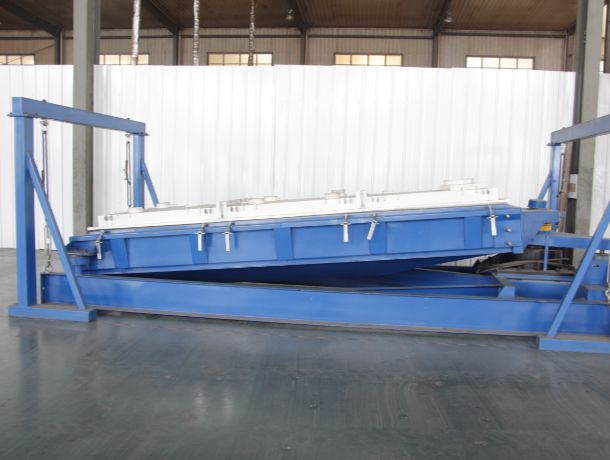

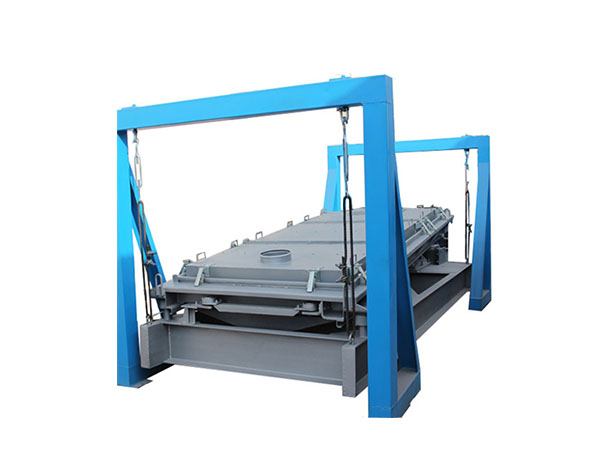

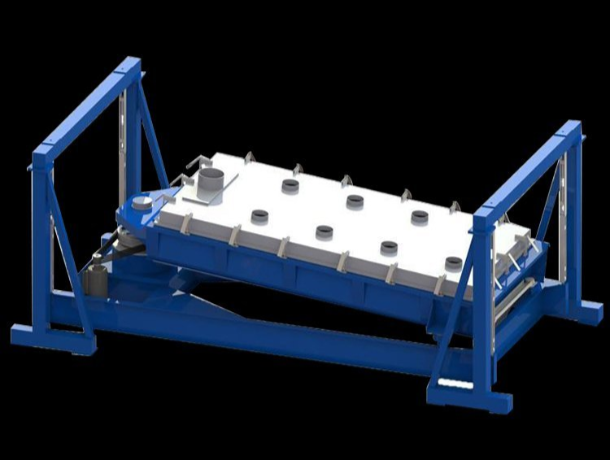

The Flat Gyratory Screen is a state-of-the-art, high-efficiency screening solution. Due to its unique reciprocating motion trajectory, it is also widely known as a Reciprocating Screen. Recognized for its exceptional precision, many manufacturers refer to it as a Precision Sifter or Square Precision Sifter.
Working Principle:
The Flat Gyratory Screen utilizes a unique gyratory-reciprocating motion that allows materials to stay on the mesh surface for a longer duration. This horizontal motion, combined with a gentle tilt, ensures that particles undergo a precise stratification process, separating undersize from oversize with unmatched accuracy compared to traditional vibrating screens.
- *Undersize Material: Particles smaller than the mesh aperture pass through the screen frame to the lower layer.
- *Oversize Material: Larger particles undergo continuous rolling and tumbling until they are discharged from the outlet.
This precise mechanism ensures efficient separation and completes the screening operation with superior accuracy.
Benefit
Material Solutions With Our Flat Gyratory Screen
Technical Specifications
| Model | Screening Area (M²) | Layer | Feeding Size | Amplitude (Mm) | Frequency (R/Min) | Power (KW) |
| PHZS1224 | 1.2×2.4 | 1-4 | <50mm | 75-90 | 1450 | 5.5 |
| PHZS1230 | 1.2×3 | 1-4 | <50mm | 75-90 | 1450 | 5.5 |
| PHZS1236 | 1.2×3.6 | 1-4 | <50mm | 75-90 | 1450 | 5.5 |
| PHZS1524 | 1.5×2.4 | 1-4 | <50mm | 75-90 | 1450 | 5.5 |
| PHZS1530 | 1.5×3 | 1-4 | <50mm | 75-90 | 1450 | 5.5 |
| PHZS1536 | 1.5×3.6 | 1-4 | <50mm | 75-90 | 1450 | 5.5 |
| PHZS1830 | 1.8×3 | 1-4 | <75mm | 75-90 | 750 | 7.5 |
| PHZS1836 | 1.8×3.6 | 1-4 | <75mm | 75-90 | 750 | 7.5 |
| PHZS1840 | 1.8×4 | 1-4 | <75mm | 75-90 | 750 | 7.5 |
| PHZS2036 | 2×3.6 | 1-4 | <75mm | 75-90 | 750 | 7.5 |
| PHZS2040 | 2×4 | 1-4 | <75mm | 75-90 | 750 | 11 |

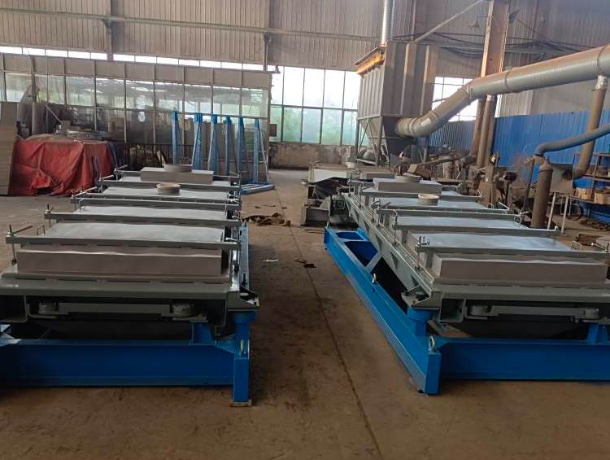

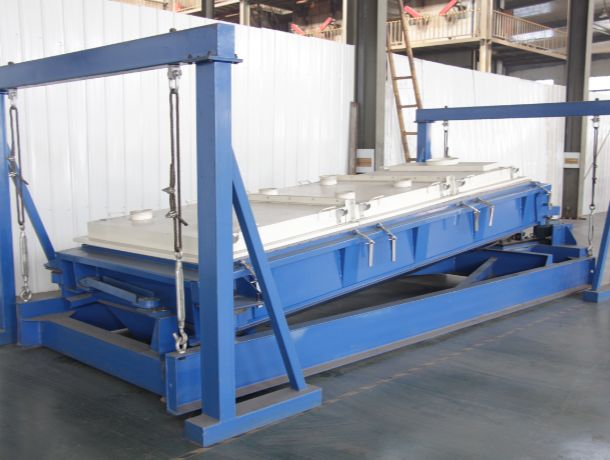

Installation Method
FAQ
The model is effected by your materials capacity, bulk density, special features(moisture, sticky etc.), mesh hole size, Percentage of each particle size, mesh type, screening purpose (grading or impurity removal)
If you don’t know how to choose, contact us to get it please.
For common machines, within 14 working days. For OEM machines or special demands product or bulk order, generally it’ll be around 30 working days.
13 months since the shipping date for the whole machines.(not include the easy-broken spare part).
We will communicate fully with you and select the most suitable screening equipment based on your material information. Before production, we will provide drawings for your final confirmation, clearly specifying all technical requirements and structural details. During the manufacturing process, our professional quality inspectors conduct strict inspections on all components. After production, each machine will undergo a 4–8 hour comprehensive test run to verify vibration stability, noise levels, and structural reliability. Will send you test videos and photos to check, ensure the entire machines fully meet your actual application requirements.
We’re top supplier of the vibrating screen and conveyors with 15 years industry experience, trusted by BASF, BYD, Wilmar, Nippon and many other famous international and China brand, quality and service are always our top priorities, if it’s the quality’s reason, we’ll undertake all the fees to replace it.
Our factory strictly implements the “6S” management mode, you can visit at any time. And tell us your visiting schedule time, we’ll pick you up at the airport or trains station. And we provide on-line visiting service too.
It’ll be related to the shipping schedule and the distance between us, mostly it’ll need 1-2 months shipping time. If you want to know the accurate time, contact us to get it please.
