Introduction of Round Vibrating Screen
HIGH-EFFICIENCY Screening Solution!

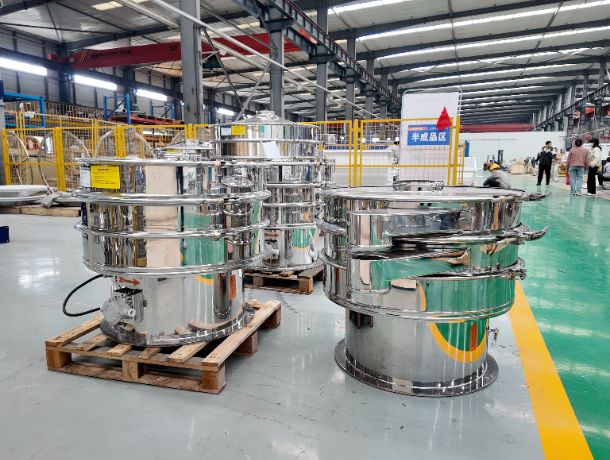

Round Rotary Vibrating Screen is a widely used industrial sieving machine. It works well for fine powders, particle grading, and slurry filtering.
The machine achieves high-precision separation through 3D motion. Powered by a high-quality vibrating motor, it uses horizontal and circular wobbling motion. The motion throws materials loose on the screen, making them move forward spirally. You can adjust vibration parameters to suit different materials.
Benefits For You
Precision in Every Detail, Simplicity in Every Use!
* Ensures smooth and continuous material discharge
* Meets GMP standards and food-grade requirements

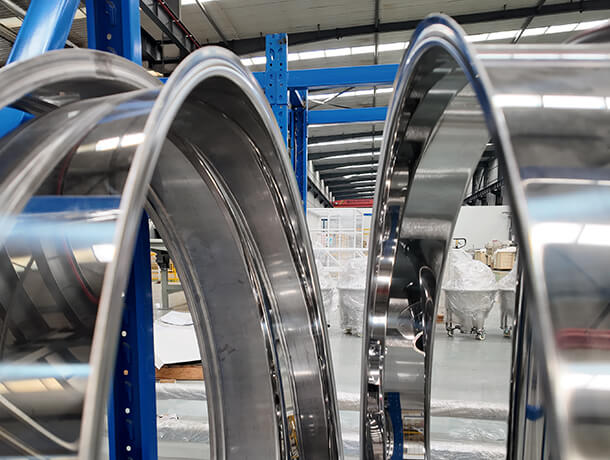

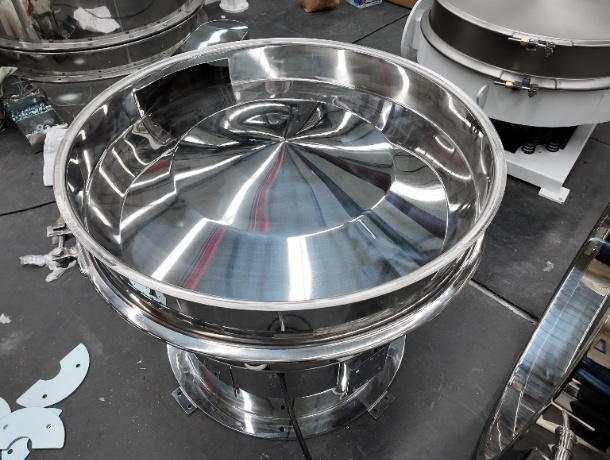

* Uses original mirror-polished plate to avoid manual polishing scratches
* Guarantees the quality of your sieved materials

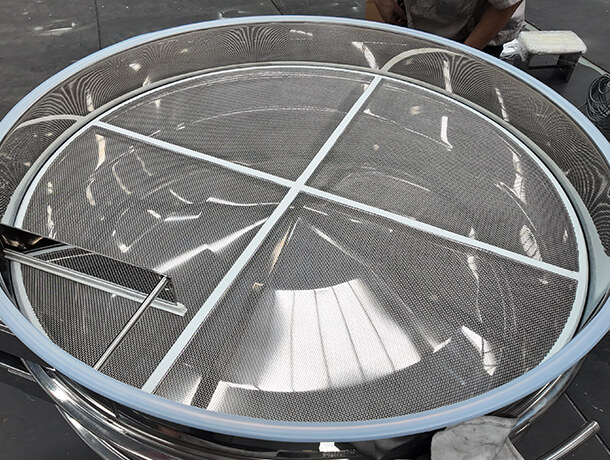

* Industry-standard setter for screen mesh in China

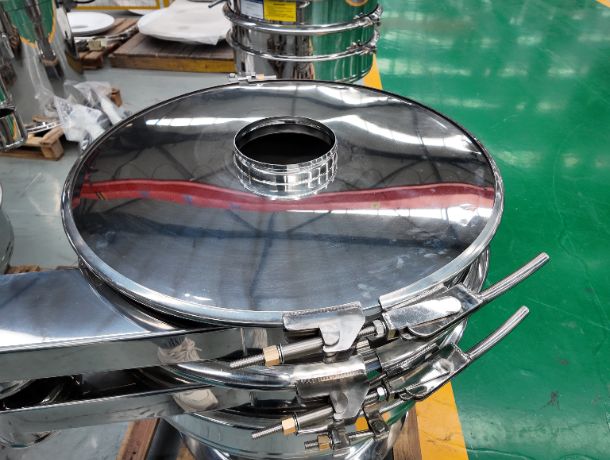

* Helps you maintain a clean, dust-free production workshop
* Screen frames are easy to swap thanks to consistent product design, ideal for bulk production sites

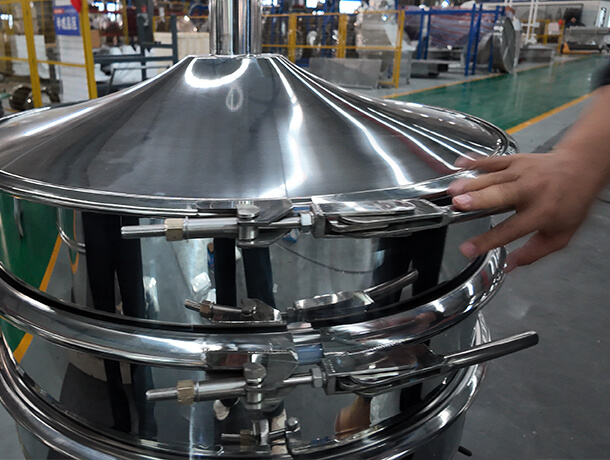

* One person can replace the screen mesh alone
* Standard configuration for rotary vibrating screens
Product Details
Technical Parameters
Our round vibrating screens come in multiple sizes to fit different production needs. See the technical parameters below for details.
| Type | Screen Diameter(mm) | Sieveing Area(㎡) | Screen Mesh | Layers | Power (kw) |
| JS400 | 400mm | 0.1 | 2-500 mesh | 1~5 | 0.18 |
| JS600 | 600mm | 0.25 | 2-500 mesh | 1~5 | 0.25 |
| JS800 | 800mm | 0.45 | 2-500 mesh | 1~5 | 0.55 |
| JS1000 | 1000mm | 0.71 | 2-500 mesh | 1~5 | 0.75 |
| JS1200 | 1200mm | 1.05 | 2-500 mesh | 1~5 | 1.1 |
| JS1500 | 1500mm | 1.6 | 2-500 mesh | 1~5 | 1.5 |
Why Leading Companies Choose Priscreen?
Serve Over 50000+ Clients, Expert In Sieving Industry!
Frequently Asked Questions （FAQ)

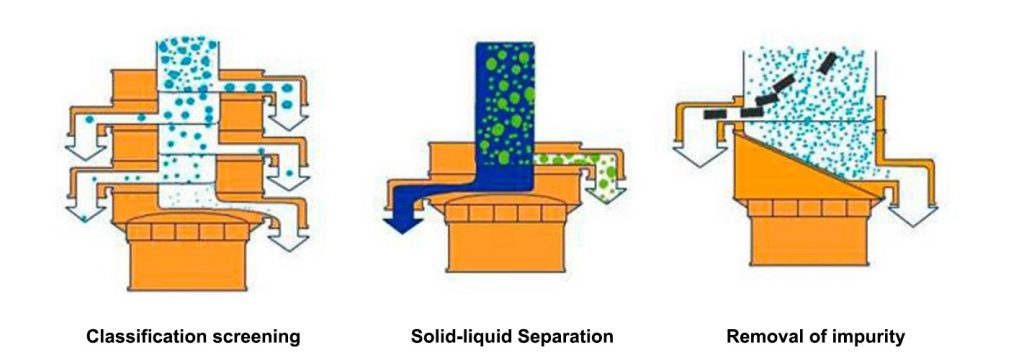

The right model depends on several key factors:Material capacity and bulk density,Special features like moisture or stickiness, Mesh hole size and particle size distribution, Your screening purpose (grading or impurity removal)
If you’re not sure which model to choose, contact us for personalized help.
For common machines, within 14 working days. For OEM machines or special demands product or bulk order, generally it’ll be around 20-25 working days.
13 months since the shipping date for the whole machines.(not include the easy-broken spare part).
– We will communicate fully with you and select the most suitable screening equipment based on your material information.
– Before production, we will provide drawing for your final confirmation, clearly specifying all technical requirements and structural details.
– During the manufacturing process, our professional quality inspectors conduct strict inspections on all components.
– After production, each machine will undergo a 48 hour comprehensive test run to verify vibration stability, noise levels, and structural reliability.
– Will send you videos and photos to check before delivery, ensure the entire machines fully meet your actual application requirements.

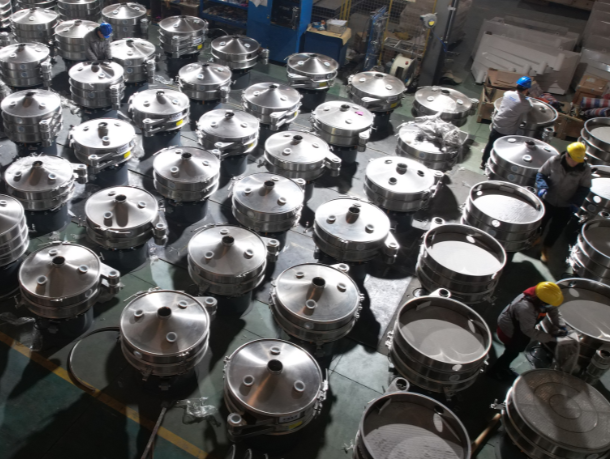

We’re top factory of the vibrating screen and conveyors with 15 years industry experience in China, trusted by BASF, BYD, CATL, Wilmar, Nippon, YILING Pharmaceutical and many other famous international and China brand, quality and service are always our top priorities, if it’s the quality’s reason, we’ll undertake all the fees to replace it.
Our factory strictly implements the “6S” management mode, you can visit at any time. And tell us your visiting schedule time, we’ll pick you up at the airport or trains station. And we provide on-line visiting service too.
It’ll be related to the shipping schedule and the distance between us, if you want to know more about the shipping, contact us to get it please.

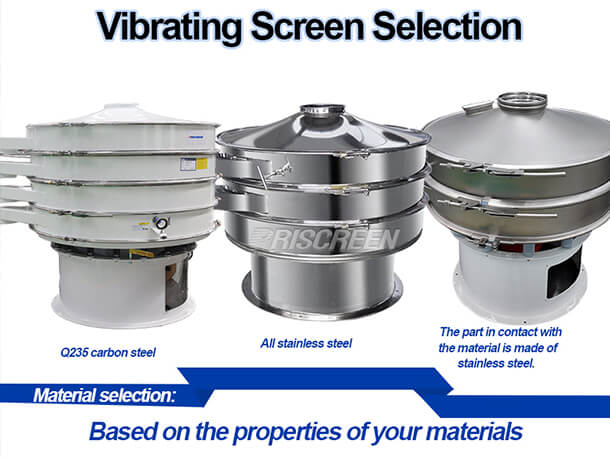

Not Sure Which Model Fits Your Material?
Every material behaves differently on the screen surface, from fine powders to coarse granules.
We offer free sample testing in our lab to verify screening efficiency before you commit.
Send us your material specifications, and we’ll recommend the optimal rotary vibrating screen for your application!
