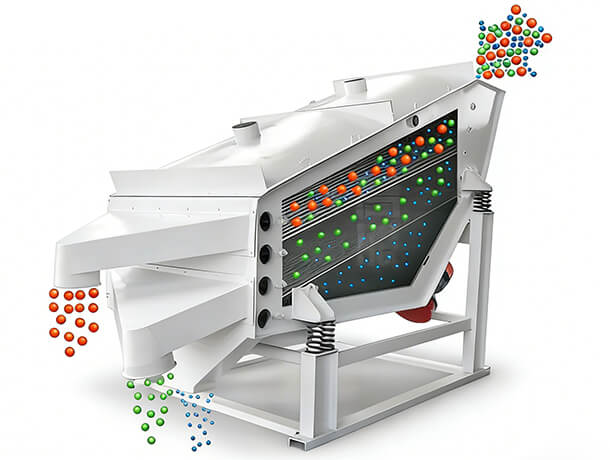

Mogensen Sieve
Mogensen sieve is an efficient screening equipment based on the principle of probability screening. Its core is to use the probability difference of material particles passing through the screen to achieve rapid classification, rather than relying solely on the size of the sieve holes for physical blocking.
Basic principle: Probability sieve actively utilizes the principle of probability, that is, when particles of different particle sizes move on the sieve surface, their chances of passing through the sieve holes (sieving probability) are different. Particles with a particle size much smaller than the sieve aperture have a higher probability of passing through the sieve, often passing through near the feeding end; Particles with a particle size close to the sieve aperture have a low probability of passing through, and they need to move further on the sieve surface to pass through. This “aggregation and separation” trend based on the probability of sieving enables the probability sieve to complete the sieving process in a very short time.
Features
Benefit
Application
Mogensen sieve is widely used in the following industries.
Mining and Mineral Processing: Used for particle size grading of various ores and minerals such as iron ore, copper ore, gold ore, phosphate ore, limestone, quartz sand, refractory materials, alumina, calcium carbonate, etc. It can effectively handle wet, viscous or difficult to sieve materials.

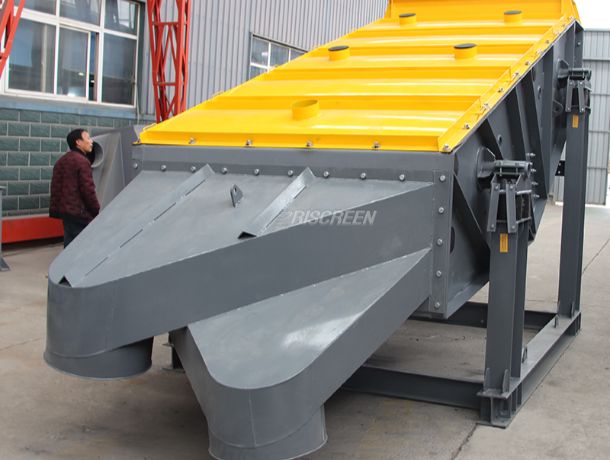

Energy industry: widely used in the coal industry, suitable for dry screening, such as coal grading, dehydration, desliming, as well as the treatment of crushed coal and stone powder.
Building materials and chemical industry: used for screening building materials and chemical materials such as sand and gravel, cement, glass powder, ceramic raw materials, epoxy resin, PVC resin, polyethylene powder, etc., which can improve production efficiency and reduce screen clogging.
Other industrial fields: including screening of granular materials such as plastics, rubber, pigments, oils, polishing materials, petroleum proppants, and coated sand, which are also applied in metallurgy, environmental protection, agriculture, and other industries
Technical Datas
| Type | Sieveing Area(㎡) | Screen Angle (°) | Layers | Power (kw) |
| JSGLS1036 | 3.6 | 10 – 20 | 1~5 | 1.1~2.2 |
| JSGLS1236 | 4.32 | 10 – 20 | 1~5 | 1.5~4 |
| JSGLS1536 | 5.4 | 10 – 20 | 1~5 | 2.2~5.5 |
| JSGLS1836 | 6.48 | 10 – 20 | 1~5 | 2.2~5.5 |
| JSGLS2036 | 7.2 | 10 – 20 | 1~5 | 3~7.5 |
Frequently Asked Questions(FAQ)
The model is effected by your materials capacity, bulk density, special features(moisture, sticky etc.), mesh hole size, Percentage of each particle size etc.
If you don’t know how to choose, contact us to get it please.
For common machines, within 14 working days. For OEM machines or special demands product or bulk order, generally it’ll be around 30 working days.
13 months since the shipping date for the whole machines.(not include the easy-broken spare part).
We will communicate fully with you and select the most suitable screening equipment based on your material information. Before production, we will provide drawings for your final confirmation, clearly specifying all technical requirements and structural details. During the manufacturing process, our professional quality inspectors conduct strict inspections on all components. After production, each machine will undergo a 4–8 hour comprehensive test run to verify vibration stability, noise levels, and structural reliability. Will send you test videos and photos to check, ensure the entire machines fully meet your actual application requirements.
We’re top supplier of the vibrating screen and conveyors with 15 years industry experience, trusted by BASF, BYD, Wilmar, Nippon and many other famous international and China brand, quality and service are always our top priorities, if it’s the quality’s reason, we’ll undertake all the fees to replace it.
Our factory strictly implements the “6S” management mode, you can visit at any time. And tell us your visiting schedule time, we’ll pick you up at the airport or trains station. And we provide on-line visiting service too.
It’ll be related to the shipping schedule and the distance between us, mostly it’ll need 1-2 months shipping time. If you want to know the accurate time, contact us to get it please.
