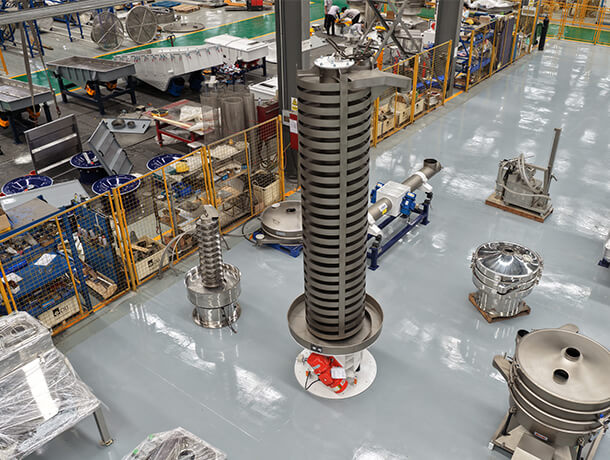

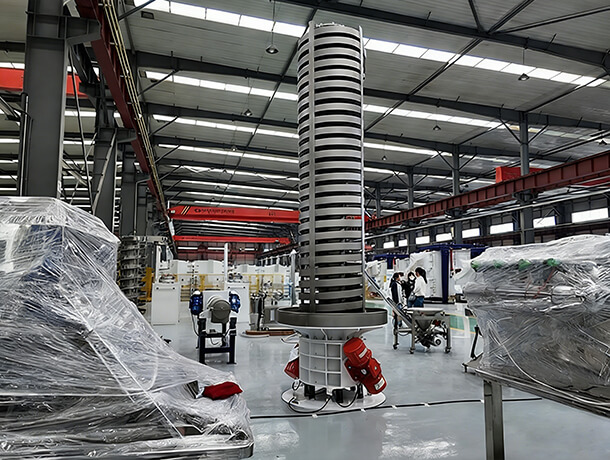

Vertical Vibrating Lifting Machine
Integrated Vertical Conveying with Simultaneous Cooling

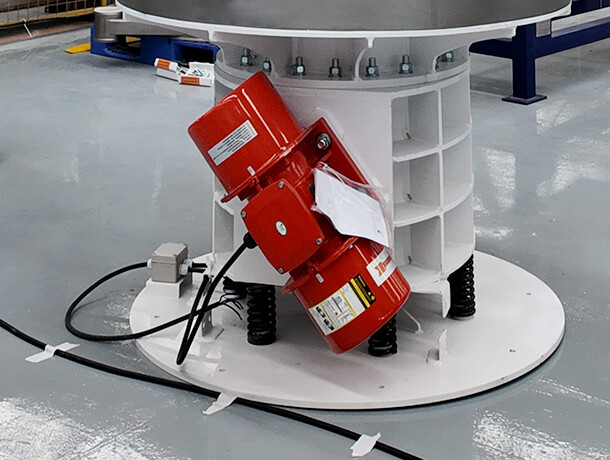

Vertical vibration lifting machine is a mechanical equipment that uses the principle of vibration to achieve vertical conveying of materials. It is powered by vibration motor and generates composite vibration through the self synchronization principle of dual motors, causing materials to be thrown or jumped along a spiral track, achieving vertical conveying. Widely used in various industries for lifting granular, powdered, and block materials, especially suitable for scenarios with high requirements for material integrity.

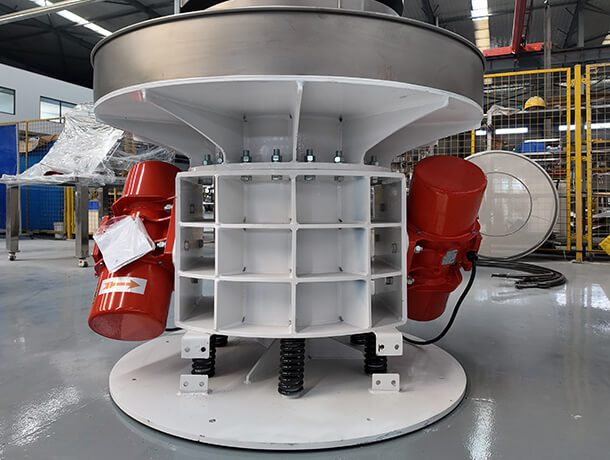

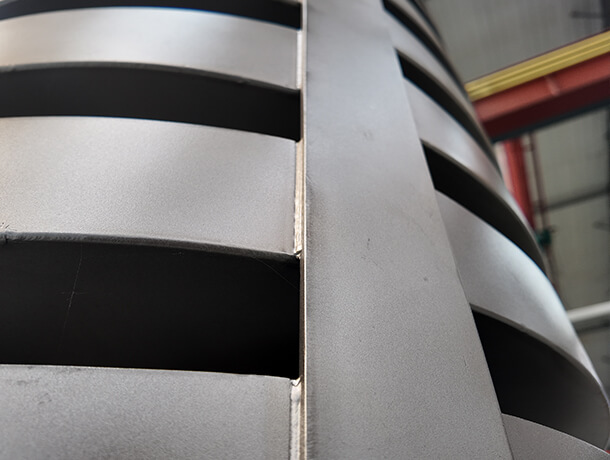

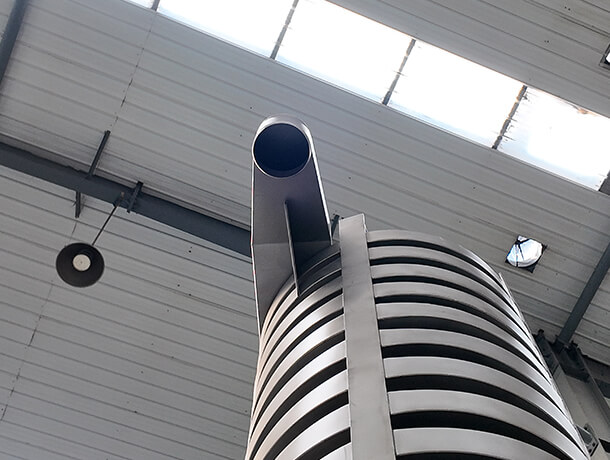

Product Features
Precision in Every Detail, Simplicity in Every Use!
Technical Parameters
| Type | Capacity | Height | Spiral Diameter | Double Amp. (mm) | Power (kw) |
| JSCTS400 | 1m³/h | ≤2500mm | 400mm | 6-9 | 0.37-0.75 |
| JSCTS600 | 3m³/h | ≤4000mm | 600mm | 6-9 | 0.75-1.1 |
| JSCTS800 | 4m³/h | ≤5000mm | 800mm | 6-9 | 0.75-1.5 |
| JSCTS1000 | 5.5m³/h | ≤6000mm | 1000mm | 6-9 | 1.1-4.2 |
| JSCTS1200 | 6.5m³/h | ≤6000mm | 1200mm | 6-9 | 1.5-5.5 |
Why Leading Companies Choose Priscreen?
Serve Over 50000+ Clients, Expert In Sieving & Conveying Industry!
Frequently Asked Questions(FAQ)
The model is effected by your materials, capacity, bulk density, particle size, temperature, lifting height.
If you don’t know how to choose, contact us to get it please.
For common machines, within 14 working days. For OEM machines or special demands product or bulk order, generally it’ll be around 20-25 working days.
13 months since the shipping date for the whole machines.(not include the easy-broken spare part).
– We will communicate fully with you and select the most suitable screening equipment based on your material information.
– Before production, we will provide drawing for your final confirmation, clearly specifying all technical requirements and structural details.
– During the manufacturing process, our professional quality inspectors conduct strict inspections on all components.
– After production, each machine will undergo a 48 hour comprehensive test run to verify vibration stability, noise levels, and structural reliability.
– Will send you videos and photos to check before delivery, ensure the entire machines fully meet your actual application requirements.
We’re top factory of the vibrating screen and conveyors with 15 years industry experience in China, trusted by BASF, BYD, CATL, Wilmar, Nippon, YILING Pharmaceutical and many other famous international and China brand, quality and service are always our top priorities, if it’s the quality’s reason, we’ll undertake all the fees to replace it.
Our factory strictly implements the “6S” management mode, you can visit at any time. And tell us your visiting schedule time, we’ll pick you up at the airport or trains station. And we provide on-line visiting service too.
It’ll be related to the shipping schedule and the distance between us, if you want to know more about the shipping, contact us to get it please.
